Helm命令

helm相关

查看helm版本

bash

[root@master1 ~]#helm version
version.BuildInfo{Version:"v3.7.2", GitCommit:"663a896f4a815053445eec4153677ddc24a0a361", GitTreeState:"clean", GoVersion:"go1.16.10"}

helm帮助命令

bash

[root@master1 ~]#helm
The Kubernetes package manager

Common actions for Helm:

- helm search:    search for charts
- helm pull:      download a chart to your local directory to view
- helm install:   upload the chart to Kubernetes
- helm list:      list releases of charts

Environment variables:

| Name                               | Description                                                                       |
|------------------------------------|-----------------------------------------------------------------------------------|
| $HELM_CACHE_HOME                   | set an alternative location for storing cached files.                             |
| $HELM_CONFIG_HOME                  | set an alternative location for storing Helm configuration.                       |
| $HELM_DATA_HOME                    | set an alternative location for storing Helm data.                                |
| $HELM_DEBUG                        | indicate whether or not Helm is running in Debug mode                             |
| $HELM_DRIVER                       | set the backend storage driver. Values are: configmap, secret, memory, sql.       |
| $HELM_DRIVER_SQL_CONNECTION_STRING | set the connection string the SQL storage driver should use.                      |
| $HELM_MAX_HISTORY                  | set the maximum number of helm release history.                                   |
| $HELM_NAMESPACE                    | set the namespace used for the helm operations.                                   |
| $HELM_NO_PLUGINS                   | disable plugins. Set HELM_NO_PLUGINS=1 to disable plugins.                        |
| $HELM_PLUGINS                      | set the path to the plugins directory                                             |
| $HELM_REGISTRY_CONFIG              | set the path to the registry config file.                                         |
| $HELM_REPOSITORY_CACHE             | set the path to the repository cache directory                                    |
| $HELM_REPOSITORY_CONFIG            | set the path to the repositories file.                                            |
| $KUBECONFIG                        | set an alternative Kubernetes configuration file (default "~/.kube/config")       |
| $HELM_KUBEAPISERVER                | set the Kubernetes API Server Endpoint for authentication                         |
| $HELM_KUBECAFILE                   | set the Kubernetes certificate authority file.                                    |
| $HELM_KUBEASGROUPS                 | set the Groups to use for impersonation using a comma-separated list.             |
| $HELM_KUBEASUSER                   | set the Username to impersonate for the operation.                                |
| $HELM_KUBECONTEXT                  | set the name of the kubeconfig context.                                           |
| $HELM_KUBETOKEN                    | set the Bearer KubeToken used for authentication.                                 |

Helm stores cache, configuration, and data based on the following configuration order:

- If a HELM_*_HOME environment variable is set, it will be used
- Otherwise, on systems supporting the XDG base directory specification, the XDG variables will be used
- When no other location is set a default location will be used based on the operating system

By default, the default directories depend on the Operating System. The defaults are listed below:

| Operating System | Cache Path                | Configuration Path             | Data Path               |
|------------------|---------------------------|--------------------------------|-------------------------|
| Linux            | $HOME/.cache/helm         | $HOME/.config/helm             | $HOME/.local/share/helm |
| macOS            | $HOME/Library/Caches/helm | $HOME/Library/Preferences/helm | $HOME/Library/helm      |
| Windows          | %TEMP%\helm               | %APPDATA%\helm                 | %APPDATA%\helm          |

Usage:
  helm [command]

Available Commands:
  completion  generate autocompletion scripts for the specified shell
  create      create a new chart with the given name
  dependency  manage a chart's dependencies
  env         helm client environment information
  get         download extended information of a named release
  help        Help about any command
  history     fetch release history
  install     install a chart
  lint        examine a chart for possible issues
  list        list releases
  package     package a chart directory into a chart archive
  plugin      install, list, or uninstall Helm plugins
  pull        download a chart from a repository and (optionally) unpack it in local directory
  repo        add, list, remove, update, and index chart repositories
  rollback    roll back a release to a previous revision
  search      search for a keyword in charts
  show        show information of a chart
  status      display the status of the named release
  template    locally render templates
  test        run tests for a release
  uninstall   uninstall a release
  upgrade     upgrade a release
  verify      verify that a chart at the given path has been signed and is valid
  version     print the client version information

Flags:
      --debug                       enable verbose output
  -h, --help                        help for helm
      --kube-apiserver string       the address and the port for the Kubernetes API server
      --kube-as-group stringArray   group to impersonate for the operation, this flag can be repeated to specify multiple groups.
      --kube-as-user string         username to impersonate for the operation
      --kube-ca-file string         the certificate authority file for the Kubernetes API server connection
      --kube-context string         name of the kubeconfig context to use
      --kube-token string           bearer token used for authentication
      --kubeconfig string           path to the kubeconfig file
  -n, --namespace string            namespace scope for this request
      --registry-config string      path to the registry config file (default "/root/.config/helm/registry.json")
      --repository-cache string     path to the file containing cached repository indexes (default "/root/.cache/helm/repository")
      --repository-config string    path to the file containing repository names and URLs (default "/root/.config/helm/repositories.yaml")

Use "helm [command] --help" for more information about a command.
[root@master1 ~]#

helm repo

查看当前helm chart仓库：`list命令`

bash

helm repo list == helm repo ls

例子：
[root@Devops6 ~]#helm repo list
WARNING: Kubernetes configuration file is group-readable. This is insecure. Location: /root/.kube/config
WARNING: Kubernetes configuration file is world-readable. This is insecure. Location: /root/.kube/config
NAME       	URL
stable     	http://mirror.azure.cn/kubernetes/charts/
devops6repo	http://172.29.9.120/chartrepo/devops6/

helm添加仓库并更新：`add命令`

bash

# helm repo add 仓库名称 仓库地址

helm repo add apisix https://charts.apiseven.com
helm repo update

更新helm仓库：`update命令`

bash

helm repo update

查找chart：`search命令`

bash

[root@master ~]#helm search --help
Usage:
  helm search [command]

Available Commands:
  hub         search for charts in the Artifact Hub or your own hub instance
  repo        search repositories for a keyword in charts

#说明：
helm search hub      从 artifact hub中搜索
helm search repo     从本地的仓库搜索

案例：

用 search 命令来搜索可以安装的 chart 包

bash

[root@master ~]#helm search repo
或者
[root@master ~]#helm search repo stable
NAME                                    CHART VERSION   APP VERSION                     DESCRIPTION
stable/acs-engine-autoscaler            2.2.2           2.1.1                           DEPRECATED Scales worker nodes within agent pools
stable/aerospike                        0.3.1           v4.5.0.5                        A Helm chart for Aerospike in Kubernetes
stable/airflow                          5.2.1           1.10.4                          Airflow is a platform to programmatically autho...
stable/ambassador                       5.1.0           0.85.0                          A Helm chart for Datawire Ambassador
stable/anchore-engine                   1.3.7           0.5.2                           Anchore container analysis and policy evaluatio...
stable/apm-server                       2.1.5           7.0.0                           The server receives data from the Elastic APM a...
......

用 search 命令来搜索可以安装的 mysql chart 包:

虽然这里是一个废弃的版本，但是用来做测试是没任何问题的。

bash

[root@master ~]#helm search repo mysql
NAME                                    CHART VERSION   APP VERSION     DESCRIPTION
stable/mysql                            1.6.9           5.7.30          DEPRECATED - Fast, reliable, scalable, and easy...
stable/mysqldump                        2.6.2           2.4.1           DEPRECATED! - A Helm chart to help backup MySQL...
stable/prometheus-mysql-exporter        0.7.1           v0.11.0         DEPRECATED A Helm chart for prometheus mysql ex...
stable/percona                          1.2.3           5.7.26          DEPRECATED - free, fully compatible, enhanced, ...
stable/percona-xtradb-cluster           1.0.8           5.7.19          DEPRECATED - free, fully compatible, enhanced, ...
stable/phpmyadmin                       4.3.5           5.0.1           DEPRECATED phpMyAdmin is an mysql administratio...
stable/gcloud-sqlproxy                  0.6.1           1.11            DEPRECATED Google Cloud SQL Proxy
stable/mariadb                          7.3.14          10.3.22         DEPRECATED Fast, reliable, scalable, and easy t...
[root@master ~]#

推送包到helm chart仓库

本文由简悦 SimpRead 转码，原文地址 blog.csdn.net

helm 默认是不带 push 功能的，因此无法直接将本地的 chart 文件直接上传到 ChartMuseum 中。

1、安装插件

$ helm plugin install https://github.com/chartmuseum/helm-push
Downloading and installing helm-push v0.10.1 ...
https://github.com/chartmuseum/helm-push/releases/download/v0.10.1/helm-push_0.10.1_darwin_amd64.tar.gz
Installed plugin: cm-push

直接安装二进制包

bash

mv helm-cm-push /usr/bin/

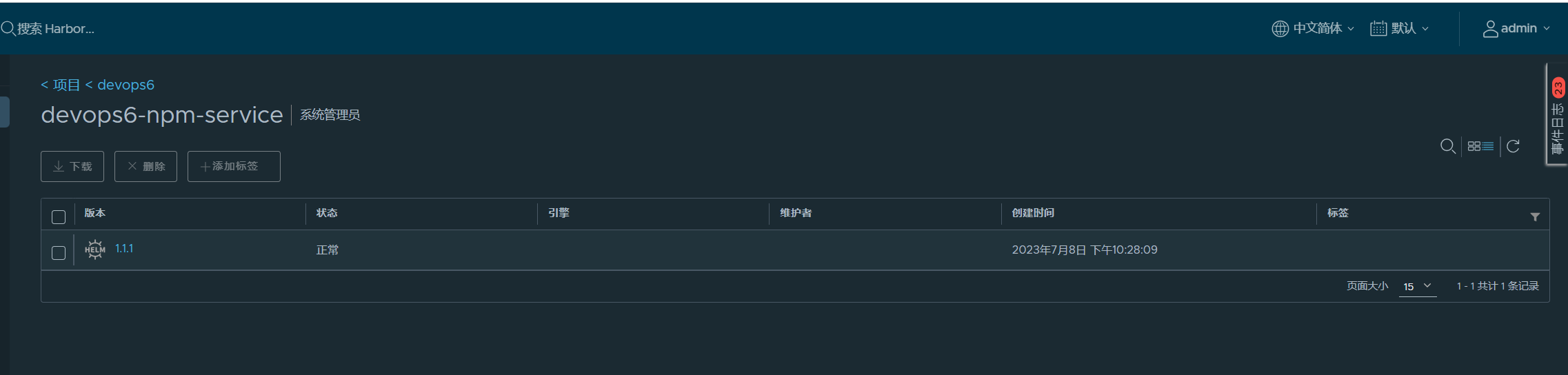

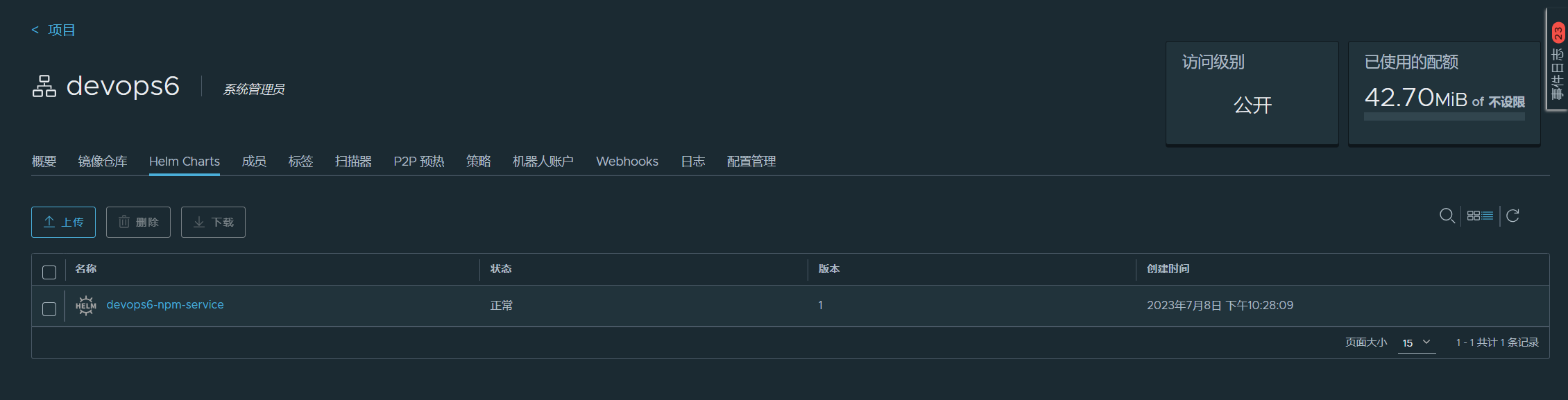

[root@Devops6 devops6-npm-service_HELMCI]#helm-cm-push devops6-npm-service-1.1.1.tgz devops6repo
Pushing devops6-npm-service-1.1.1.tgz to devops6repo...
Done.

软件包：

链接：https://pan.baidu.com/s/1GvFSkMdRMBloKx8vwxKakA?pwd=0820 提取码：0820 2023.7.9-helm-push

2、使用

先添加对应的 ChartMuseum 地址，

$ helm repo add chartmuseum http://your-cm-repo:8080

然后可以针对你需要 push 的文件，或者目录，甚至完整的 tgz 包，进行上传，

$ helm cm-push mychart-0.3.2.tgz chartmuseum
Pushing mychart-0.3.2.tgz to chartmuseum...
Done.

如果 CM 开启了验证，需要指定用户名和密码，

$ helm cm-push mychart-0.3.2.tgz chartmuseum -u username -p password
Pushing mychart-0.3.2.tgz to chartmuseum...
Done.

更多参数可以使用 help 命令查看，

$ helm cm-push --help
Helm plugin to push chart package to ChartMuseum

Examples:

  $ helm cm-push mychart-0.1.0.tgz chartmuseum       # push .tgz from "helm package"
  $ helm cm-push . chartmuseum                       # package and push chart directory
  $ helm cm-push . --version="1.2.3" chartmuseum     # override version in Chart.yaml
  $ helm cm-push . https://my.chart.repo.com         # push directly to chart repo URL
...

参考文档：

https://github.com/chartmuseum/helm-push

helm下载charts包：`fetch命令`

这里我们可以使用helm fetch stable/mysql命令将包下载下来。

bash

[root@master1 ~]#helm fetch stable/mysql
[root@master1 ~]#ll -h mysql-1.6.9.tgz
-rw-r--r-- 1 root root 12K Apr  4 12:25 mysql-1.6.9.tgz

helm install

部署helm实例：install命令

bash

## 安装chart
helm install RELEASE_NAME   CHART_NAME
helm install happy-panda bitnami/wordpress

### 本地 chart 压缩包
helm install foo foo-0.1.1.tgz

### 解压后的 chart 目录
helm install foo path/to/foo

### 完整的 URL
helm install foo https://example.com/charts/foo-1.2.3.tgz

==工作里比较常用的一条命令==【荐】

为了安装一个 chart 包，我们可以使用 helm install 命令，Helm 有多种方法来找到和安装 chart 包，但是最简单的方法当然是使用官方的 stable 这个仓库直接安装：

首先从仓库中将可用的 charts 信息同步到本地，可以确保我们获取到最新的 charts 列表：（一般每次安装/更新时都建议先update下仓库）

shell

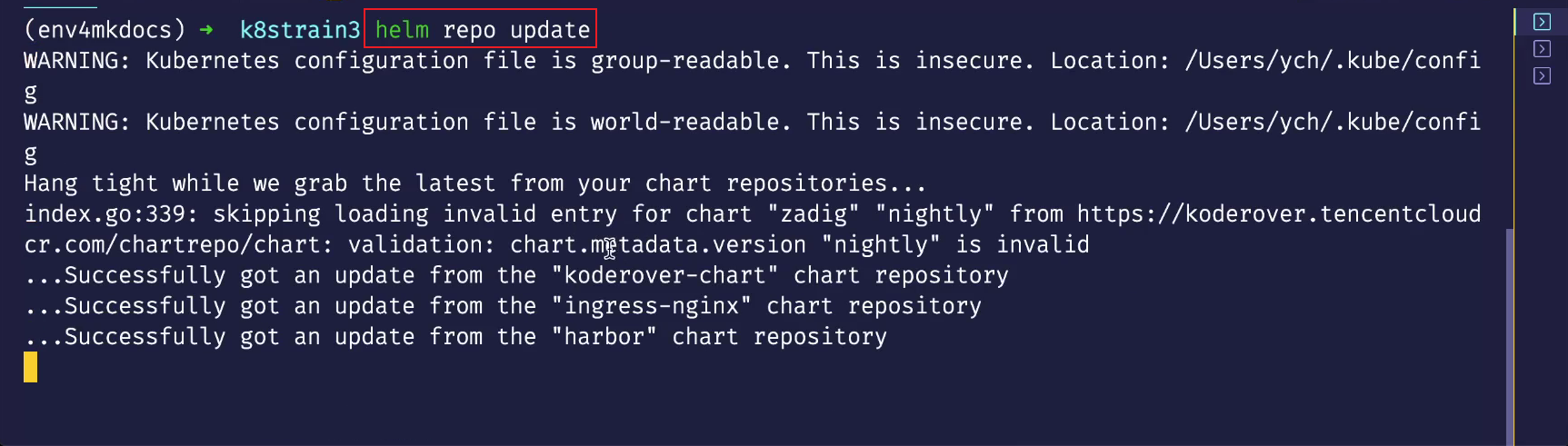

☸ ➜ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "stable" chart repository
Update Complete. ⎈ Happy Helming!⎈

一条命令部署应用：

bash

案例1：
[root@master1 ~]#helm upgrade --install longhorn longhorn/longhorn  --create-namespace --namespace longhorn-system -f values.yaml
#说明
longhorn 应用的名称
longhorn/longhorn chart包
upgrade --install 第一次是安装，后面就是更新了
--create-namespace 如果是本次需要用到的命名空间，可以加上这个参数

案例2：
[root@master1 ~]#helm upgrade --install traefik ./traefik -f ./traefik/ci/deployment-prod.yaml --create-namespace --namespace kube-system
Release "traefik" has been upgraded. Happy Helming!
NAME: traefik
LAST DEPLOYED: Sun Jan 16 11:55:13 2022
NAMESPACE: kube-system
STATUS: deployed
REVISION: 2
TEST SUITE: None

`helm install` 命令可以从多个源进行安装

chart 仓库（类似于上面我们提到的）
本地 chart 压缩包（helm install foo-0.1.1.tgz）
本地解压缩的 chart 目录（helm install foo path/to/foo）
在线的 URL（helm install fool https://example.com/charts/foo-1.2.3.tgz）

注意：有时helm upgrade --install命令可能下载不下来

有时helm upgrade --install命令可能下载不下来，可以先用helm fetch longhorn/longhorn命令将helm软件包下载下来，然后修改好values.yaml文件，再使用如下命令安装就好：

bash

helm upgrade --install longhorn .  --create-namespace --namespace longhorn-system -f values.yaml

特别注意：做实验时一定要记得当时对values.yaml文件做了哪方面的改动！

不然可能导致helm安装软件失败

`-generate-name`选项：生成一个随机名称

bash

[root@master1 ~]#helm install stable/mysql --generate-name
WARNING: This chart is deprecated
NAME: mysql-1649031212
LAST DEPLOYED: Mon Apr  4 08:13:37 2022
NAMESPACE: default
STATUS: deployed
REVISION: 1
NOTES:
MySQL can be accessed via port 3306 on the following DNS name from within your cluster:
mysql-1649031212.default.svc.cluster.local

To get your root password run:

    MYSQL_ROOT_PASSWORD=$(kubectl get secret --namespace default mysql-1649031212 -o jsonpath="{.data.mysql-root-password}" | base64 --decode; echo)

To connect to your database:

1. Run an Ubuntu pod that you can use as a client:

    kubectl run -i --tty ubuntu --image=ubuntu:16.04 --restart=Never -- bash -il

2. Install the mysql client:

    $ apt-get update && apt-get install mysql-client -y

3. Connect using the mysql cli, then provide your password:
    $ mysql -h mysql-1649031212 -p

To connect to your database directly from outside the K8s cluster:
    MYSQL_HOST=127.0.0.1
    MYSQL_PORT=3306

    # Execute the following command to route the connection:
    kubectl port-forward svc/mysql-1649031212 3306

    mysql -h ${MYSQL_HOST} -P${MYSQL_PORT} -u root -p${MYSQL_ROOT_PASSWORD}

helm升级：upgrade命令

bash

[root@master1 ~]#helm upgrade mysql stable/mysql -f 01-config.yaml

helm rollback

rollback命令

bash

## 回滚
helm history [RELEASE] 命令来查看一个特定 release 的修订版本号。
helm rollback
helm rollback [RELEASE] [REVISION]

例子：

bash

[root@master1 ~]#helm rollback mysql 1
Rollback was a success! Happy Helming!

helm release

查看与卸载helm实例

bash

1.查看已经安装的release
[root@master1 ~]#helm list -n apisix #helm ls
NAME    NAMESPACE   REVISION    UPDATED                                 STATUS      CHART           APP VERSION
apisix  apisix      1           2022-02-14 07:30:08.608328227 +0800 CST deployed    apisix-0.7.2    2.10.0
或者：
helm status mysql-1649031212 #查看release的状态

2.卸载helm实例
[root@master1 ~]#helm uninstall apisix -n apisix
release "apisix" uninstalled
或者
➜ helm uninstall mysql-1575619811 --keep-history
release "mysql-1575619811" uninstalled

也可以在删除的时候使用 --keep-history 参数，则会保留 release 的历史记录，可以获取该 release 的状态就是 UNINSTALLED，而不是找不到 release了：

bash

➜ helm uninstall mysql-1575619811 --keep-history
release "mysql-1575619811" uninstalled

➜ helm status mysql-1575619811
helm status mysql-1575619811
NAME: mysql-1575619811
LAST DEPLOYED: Fri Dec  6 16:47:14 2019
NAMESPACE: default
STATUS: uninstalled
...

➜ helm ls -a
NAME                NAMESPACE   REVISION    UPDATED                                 STATUS      CHART       APP VERSION
mysql-1575619811    default     1           2019-12-06 16:47:14.415214 +0800 CST    uninstalled mysql-1.5.0 5.7.27

因为 Helm 会在删除 release 后跟踪你的 release，所以你可以审查历史甚至取消删除 release（使用 helm rollback 命令）。

⚠️ 注意：也可以使用helm delete来卸载release

bash

[root@master ~]#helm ls
NAME                    NAMESPACE       REVISION        UPDATED                                 STATUS          CHART           APP VERSION
mysql-1711286279        default         1               2024-03-24 21:18:00.924308284 +0800 CST deployed        mysql-1.6.9     5.7.30
[root@master ~]#helm delete mysql-1711286279
release "mysql-1711286279" uninstalled
[root@master ~]#helm ls
NAME    NAMESPACE       REVISION        UPDATED STATUS  CHART   APP VERSION
[root@master ~]#

查看某个release通过`-f或者--`自定义的值

bash

[root@master ~]#helm get values mysql
USER-SUPPLIED VALUES:
mysqlDatabase: user0db
mysqlPassword: user0pwd
mysqlUser: user0
persistence:
  enabled: false
[root@master ~]#

追踪release的状态

bash

## 追踪release的状态
helm status happy-panda

查看某个release的历史

bash

[root@master1 ~]#helm history mysql

查看release安装后对应的k8s资源状态

bash

[root@master1 ~]#kubectl get all -l release=mysql-1649031212
NAME                                   READY   STATUS    RESTARTS   AGE
pod/mysql-1649031212-9df8c986b-8tj8z   1/1     Running   0          2m3s

NAME                       TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
service/mysql-1649031212   ClusterIP   10.105.125.254   <none>        3306/TCP   2m4s

NAME                               READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/mysql-1649031212   1/1     1            1           2m4s

NAME                                         DESIRED   CURRENT   READY   AGE
replicaset.apps/mysql-1649031212-9df8c986b   1         1         1       2m3s

helm chart

查看一个 chart 包的所有可配置的参数选项

bash

☸ ➜ helm show values stable/mysql
## mysql image version
## ref: https://hub.docker.com/r/library/mysql/tags/
##
image: "mysql"
imageTag: "5.7.30"

strategy:
  type: Recreate

busybox:
  image: "busybox"
  tag: "1.32"

testFramework:
  enabled: true
  image: "bats/bats"
  tag: "1.2.1"
  imagePullPolicy: IfNotPresent
  securityContext: {}

## Specify password for root user
##
## Default: random 10 character string
# mysqlRootPassword: testing

## Create a database user
##
# mysqlUser:
## Default: random 10 character string
# mysqlPassword:

## Allow unauthenticated access, uncomment to enable
##
# mysqlAllowEmptyPassword: true

## Create a database
##
# mysqlDatabase:

## Specify an imagePullPolicy (Required)
## It's recommended to change this to 'Always' if the image tag is 'latest'
## ref: http://kubernetes.io/docs/user-guide/images/#updating-images
##
imagePullPolicy: IfNotPresent
......

查看chart包的特性

bash

[root@master1 ~]#helm show chart stable/mysql
apiVersion: v1
appVersion: 5.7.30
deprecated: true
description: DEPRECATED - Fast, reliable, scalable, and easy to use open-source relational
  database system.
home: https://www.mysql.com/
icon: https://www.mysql.com/common/logos/logo-mysql-170x115.png
keywords:
- mysql
- database
- sql
name: mysql
sources:
- https://github.com/kubernetes/charts
- https://github.com/docker-library/mysql
version: 1.6.9

如果想要了解更多信息，可以用 helm show all 命令：

bash

➜ helm show all stable/mysql #可以看一些定制特性！
......

查看一个 chart 包的所有可配置的参数选项

bash

## 查看chart中的可配置选项
helm show values CHART_NAME
helm install -f values.yaml bitnami/wordpress --generate-name

数据传递：
   --values /-f  指定yaml文件
   --set 命令行方式对值进行覆盖

`helm get values` 来查看新设置是否生效

bash

[root@master1 ~]#helm get values mysql

helm `debug命令`

bash

[root@master1 ~]#helm ls --debug

`helm template命令` 只渲染，不部署

bash

语法：
➜  ~ helm template -h
Usage:
      helm template [NAME] [CHART] [flags]

Render(渲染) chart templates locally and display the output.
……

不部署，但可以将最终yaml文件给渲染出来：

bash

例子：
$ helm template mysql stable/mysql > mysql.yaml
$ cat mysql.yaml

关于我

我的博客主旨：

排版美观，语言精炼；
文档即手册，步骤明细，拒绝埋坑，提供源码；
本人实战文档都是亲测成功的，各位小伙伴在实际操作过程中如有什么疑问，可随时联系本人帮您解决问题，让我们一起进步！

🍀 微信二维码 x2675263825 （舍得）， qq：2675263825。

🍀 微信公众号《云原生架构师实战》

🍀 语雀

https://www.yuque.com/xyy-onlyone

🍀 csdn https://blog.csdn.net/weixin_39246554?spm=1010.2135.3001.5421

🍀 知乎 https://www.zhihu.com/people/foryouone

最后

好了，关于本次就到这里了，感谢大家阅读，最后祝大家生活快乐，每天都过的有意义哦，我们下期见！

镜像构建

如何下载国外镜像

容器运行时

Containerd

kubeadmin

二进制

kind

Sealos

k8s集群安装工具

ingress-nginx

NFS存储

OpenKruise

PrometheusOperator

服务网格基础

Envoy

Istio基础

Istio扩展

金丝雀发布

项目实战

istio版本迭代

kubectl

Helm命令 ​

Helm命令 ​

目录 ​

helm相关 ​

查看helm版本 ​

helm帮助命令 ​

helm repo ​

查看当前helm chart仓库：list命令 ​

helm添加仓库并更新：add命令 ​

更新helm仓库：update命令 ​

查找chart：search命令 ​

推送包到helm chart仓库 ​

helm下载charts包：fetch命令 ​

helm install ​

==工作里比较常用的一条命令==【荐】 ​

helm install 命令可以从多个源进行安装 ​

注意：有时helm upgrade --install命令可能下载不下来 ​

特别注意：做实验时一定要记得当时对values.yaml文件做了哪方面的改动！ ​

-generate-name选项：生成一个随机名称 ​

helm rollback ​

helm release ​

查看与卸载helm实例 ​

查看某个release通过-f或者--自定义的值 ​

追踪release的状态 ​

查看某个release的历史 ​

查看release安装后对应的k8s资源状态 ​

helm chart ​

查看一个 chart 包的所有可配置的参数选项 ​

查看chart包的特性 ​

查看一个 chart 包的所有可配置的参数选项 ​

helm get values 来查看新设置是否生效 ​

helm debug命令 ​

helm template命令 只渲染，不部署 ​

关于我 ​

最后 ​

Helm命令

Helm命令

目录

helm相关

查看helm版本

helm帮助命令

helm repo

查看当前helm chart仓库：`list命令`

helm添加仓库并更新：`add命令`

更新helm仓库：`update命令`

查找chart：`search命令`

推送包到helm chart仓库

helm下载charts包：`fetch命令`

helm install

==工作里比较常用的一条命令==【荐】

`helm install` 命令可以从多个源进行安装

注意：有时helm upgrade --install命令可能下载不下来

特别注意：做实验时一定要记得当时对values.yaml文件做了哪方面的改动！

`-generate-name`选项：生成一个随机名称

helm rollback

helm release

查看与卸载helm实例

查看某个release通过`-f或者--`自定义的值

追踪release的状态

查看某个release的历史

查看release安装后对应的k8s资源状态

helm chart

查看一个 chart 包的所有可配置的参数选项

查看chart包的特性

查看一个 chart 包的所有可配置的参数选项

`helm get values` 来查看新设置是否生效

helm `debug命令`

`helm template命令` 只渲染，不部署

关于我

最后
