环境

  • 实验环境
1jenkins/jenkins:2.346.3-2-lts-jdk11
2gitee仓库/github仓库/gitlab仓库都行
  • 实验软件

链接:https://pan.baidu.com/s/12a9iRveUOUbQpSNAE7WhIw 提取码:0820 2023.4.11-共享库-代码

image-20230411211715046

1、共享库概述

共享库这并不是一个全新的概念,其实在编程语言Python中,我们可以将Python代码写到一个文件中,当代码数量增加,我们可以将代码打包成模块然后再以import的方式使用此模块中的方法。

在Jenkins中使用Groovy语法,共享库中存储的每个文件都是一个groovy的类,每个文件(类)中包含一个或多个方法。每个方法包含groovy语句块。

可以在Git等版本控制系统中创建一个项目用于存储共享库。共享流水线有助于减少冗余并保持代码整洁。

image-20230410132418409

库结构:

  • src: 类似于java的源码目录,执行流水线时会加载到class路径中。 //需要先导入才可以使用
  • vars: 存放全局变量脚本,小的功能函数。 //可以直接加载的
  • resources: 存放资源文件,类似于配置信息文件。

2、共享库定义

1.创建一个项目

devops06-jenkins-library

可以直接在github中创建一个公开类型的仓库,仓库名称自定义。公开类型的仓库是为了便于验证,也可以创建私有类型的,但是需要提前配置好仓库的认证凭据。

image-20230410125443419

2.创建目录结构

image-20230410132911036

1src
2vars
3rsources

3.将函数写入共享库中

1、创建resources/config/config.json文件

image-20230410133719423

1{
2    "id": 100,
3    "name": "devops"
4}

2、创建src/og/devops/Common.groovy文件

image-20230411060852834

 1package org.devops
 2
 3// define GetUserName
 4def GetUserNameByID(users,id){
 5    for (i in users){
 6        if (i["id"] == id){
 7            return i["name"]
 8        }
 9    }
10    return "null"
11}

3、创建vars/GetUserName.groovy文件

image-20230411061059239

1// define GetUserName
2def GetUserNameByID(users,id){
3    for (i in users){
4        if (i["id"] == id){
5            return i["name"]
6        }
7    }
8    return "null"
9}

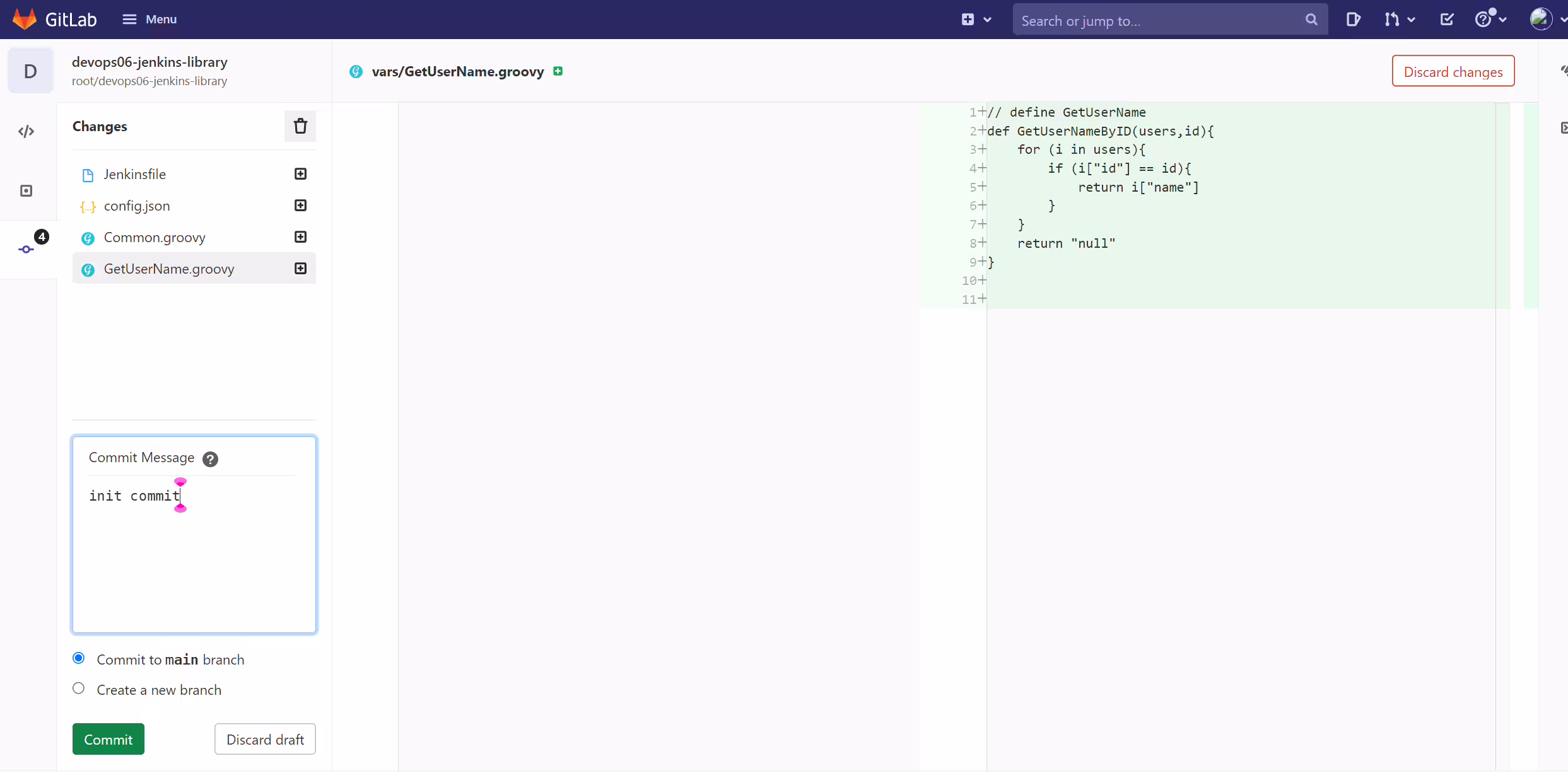

提交:(这里以main分支提交)

image-20230411061242543

image-20230411061306033

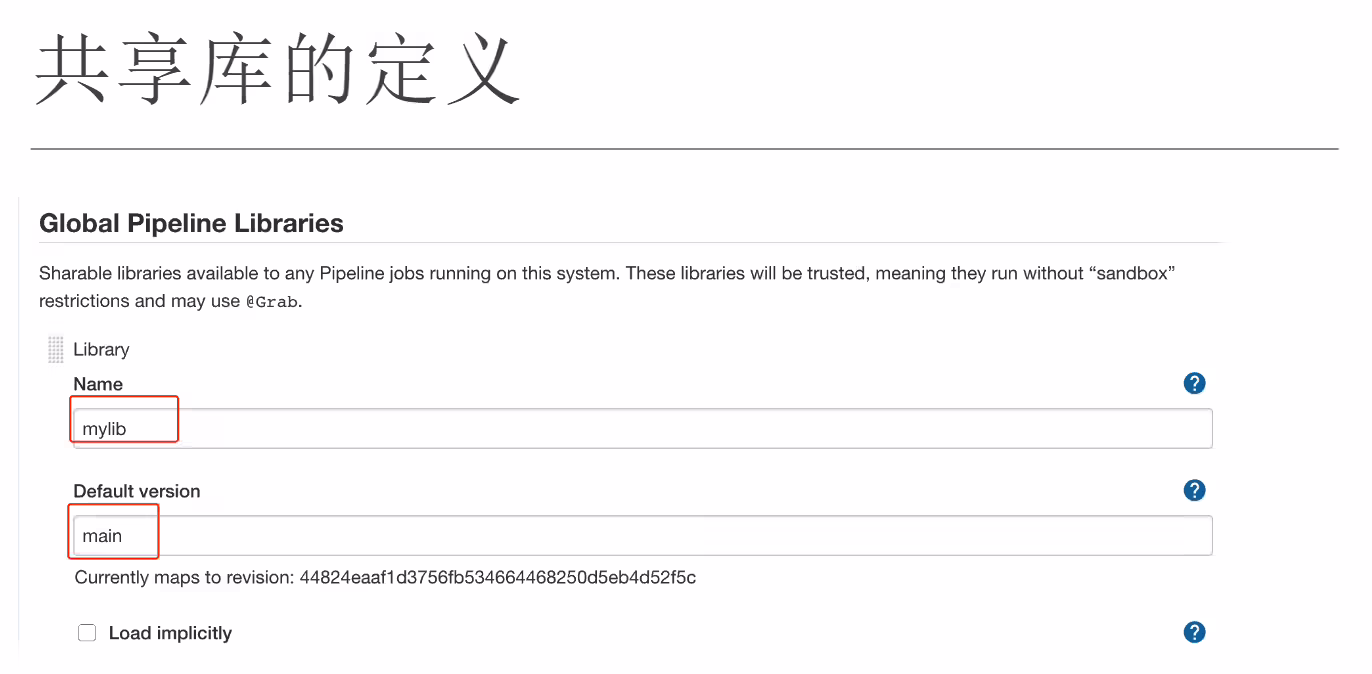

4.共享库的定义

image-20230411061858944

Jenkins系统配置 -> Global Pipeline Libraries

首先,我们为共享库设置一个名称 mylib (自定义,无需与gitlab仓库一致),注意这个名称后续在Jenkinsfile中引用。 再设置一个默认的版本,这里的版本是分支的名称。我默认配置的是main版本。(github默认版本必须是main)

image-20230411062235324

⚠️ 注意:

  • 这里的Name不一定和刚才创建的仓库名称一样,只是一个别名而已;
  • 这里的Default version填的是仓库的分支名称;
  • 共享库是可以配置多个的!
  • 接下来我们配置**共享库的仓库地址,**我的仓库在gitlab中,所以这里我填写的是Git的方式。如果仓库是私有的方式,需要在jenkins的凭据中添加一个账号用于下载共享库。

image-20230411062317360

image-20230411062301224

点击Save。

3、共享库使用

image-20230411195524142

测试1:基础使用共享库

  • 编写Jenkinsfile代码,并提交:

image-20230411063524144

 1@Library("mylib") _
 2
 3pipeline {
 4    agent any
 5
 6    stages{
 7        stage("Test"){
 8            steps{
 9                script{
10                    echo "hello world!"
11                }
12            }
13        }
14    }
15}

提交:

image-20230411063548434


⚠️

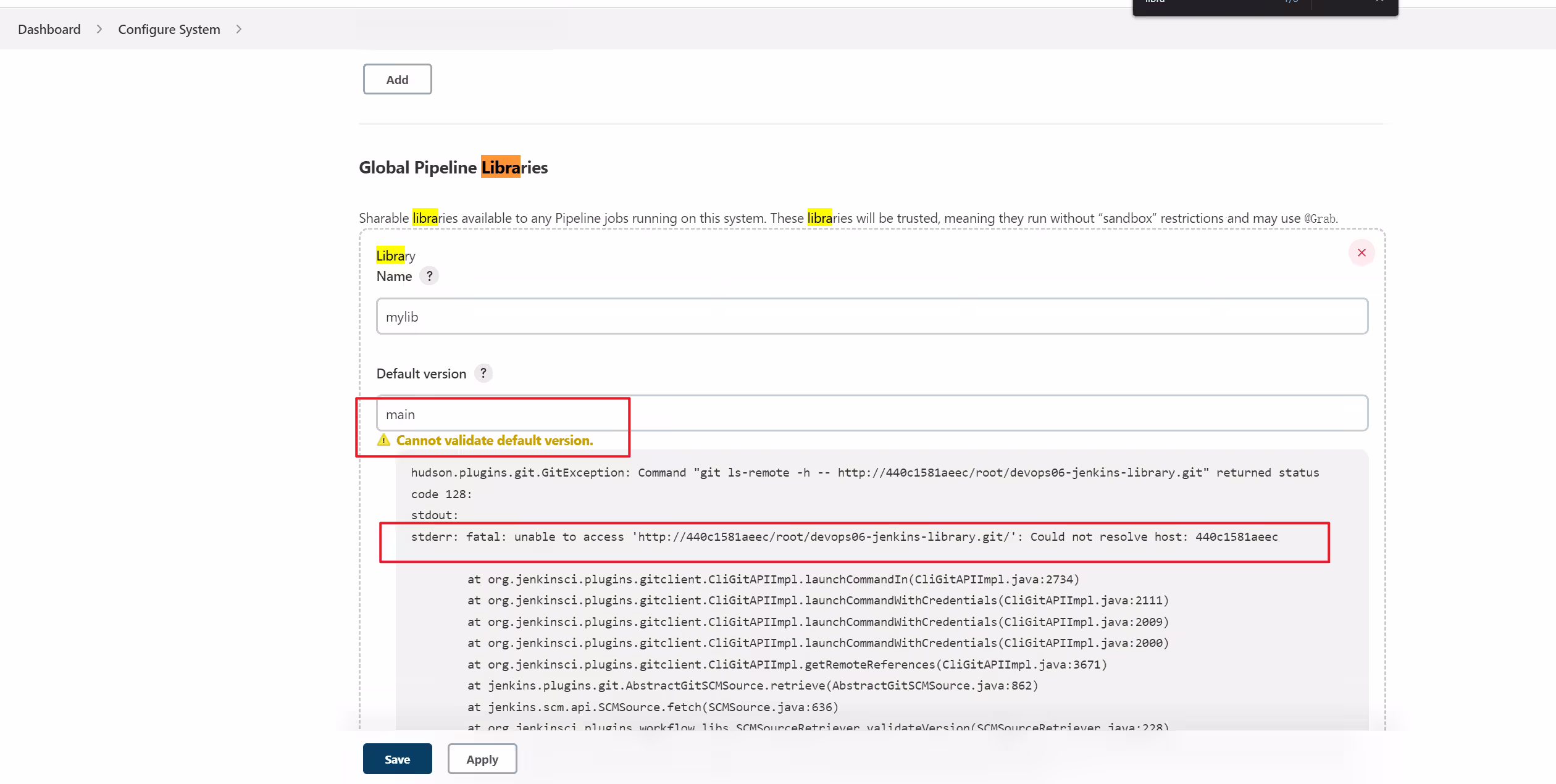

==注意:这里出现一个gitlab报错的问题……在定义共享库配置后:说是无法解析刚才的仓库地址==

1hudson.plugins.git.GitException: Command "git ls-remote -h -- http://440c1581aeec/root/devops06-jenkins-library.git" returned status code 128:
2stdout:
3stderr: fatal: unable to access 'http://440c1581aeec/root/devops06-jenkins-library.git/': Could not resolve host: 440c1581aeec

image-20230411071836594

  • 开始执行流水线:

这里再配置下流水线,让其使用gitlab里的仓库:

image-20230411072138462

image-20230411072208531

  • 运行后,这里会报错……

image-20230411072322055

  • 奇怪哇:

自己把这个字符串和本地机器做了域名解析,在自己pc上是可以正常拉取仓库的,但是jenkins是不行的……

image-20230411072422087

image-20230411072452101

这个应该是gitlab哪里的配置问题……

这里先进行搁置,此时用gitee来测试。


  • 在自己的gitee上创建相同的配置:

image-20230411072558255

  • 然后重新配置jenkins及流水线内容:

image-20230411072708681

image-20230411072731726

  • 再次运行,观察效果:

image-20230411072759312

看到,这次就成功了。😘

测试2:src目录里导包

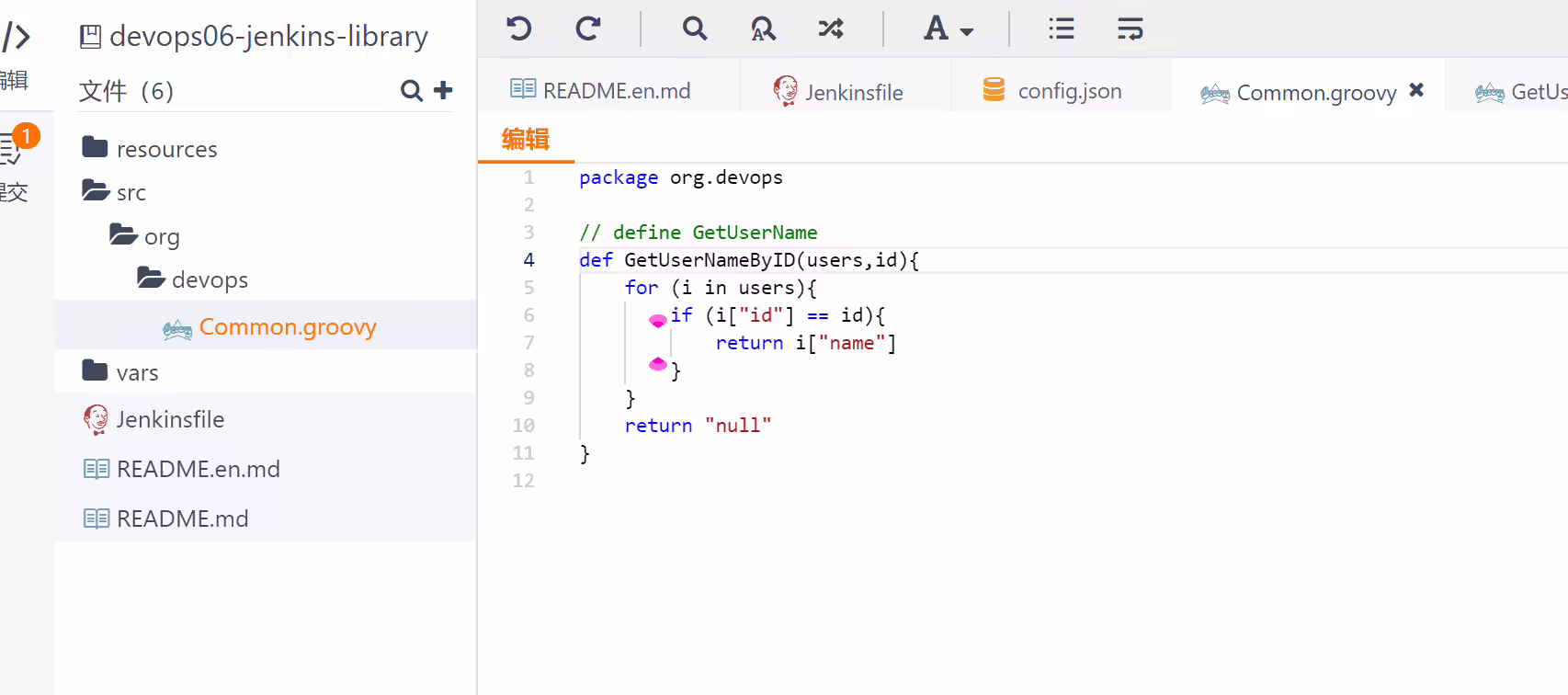

编写Jenkinsfile代码:

image-20230411074106392

image-20230411073711351

 1@Library("mylib") _
 2
 3//import Common.groovy
 4def common = new org.devops.Common()
 5
 6users = [
 7            ["id": 1, "name": "jenkins1"],
 8            ["id": 2, "name": "jenkins2"],
 9            ["id": 3, "name": "jenkins3"],
10        ]
11
12
13pipeline {
14    agent any
15
16    stages{
17        stage("Test"){
18            steps{
19                script{
20                    echo "hello world!"
21                    name = common.GetUserNameByID(users,1)
22                    print(name)
23                }
24            }
25        }
26    }
27}

提交,并运行流水线。

image-20230411074131422

image-20230411074145754

符合预期。

测试3:vars里函数调用

  • 编写jenkins代码

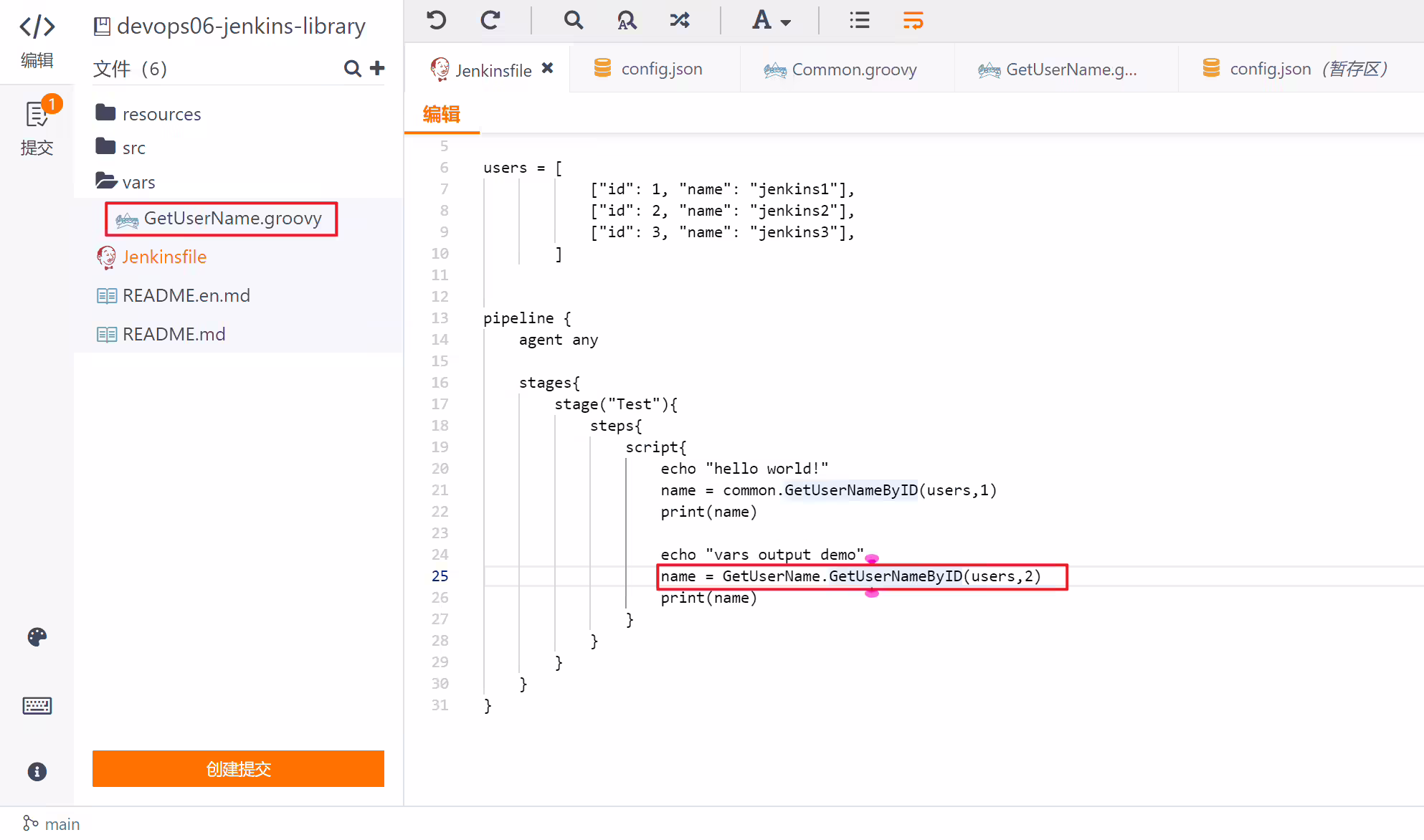

错误版演示:

image-20230411075041137

image-20230411075103115

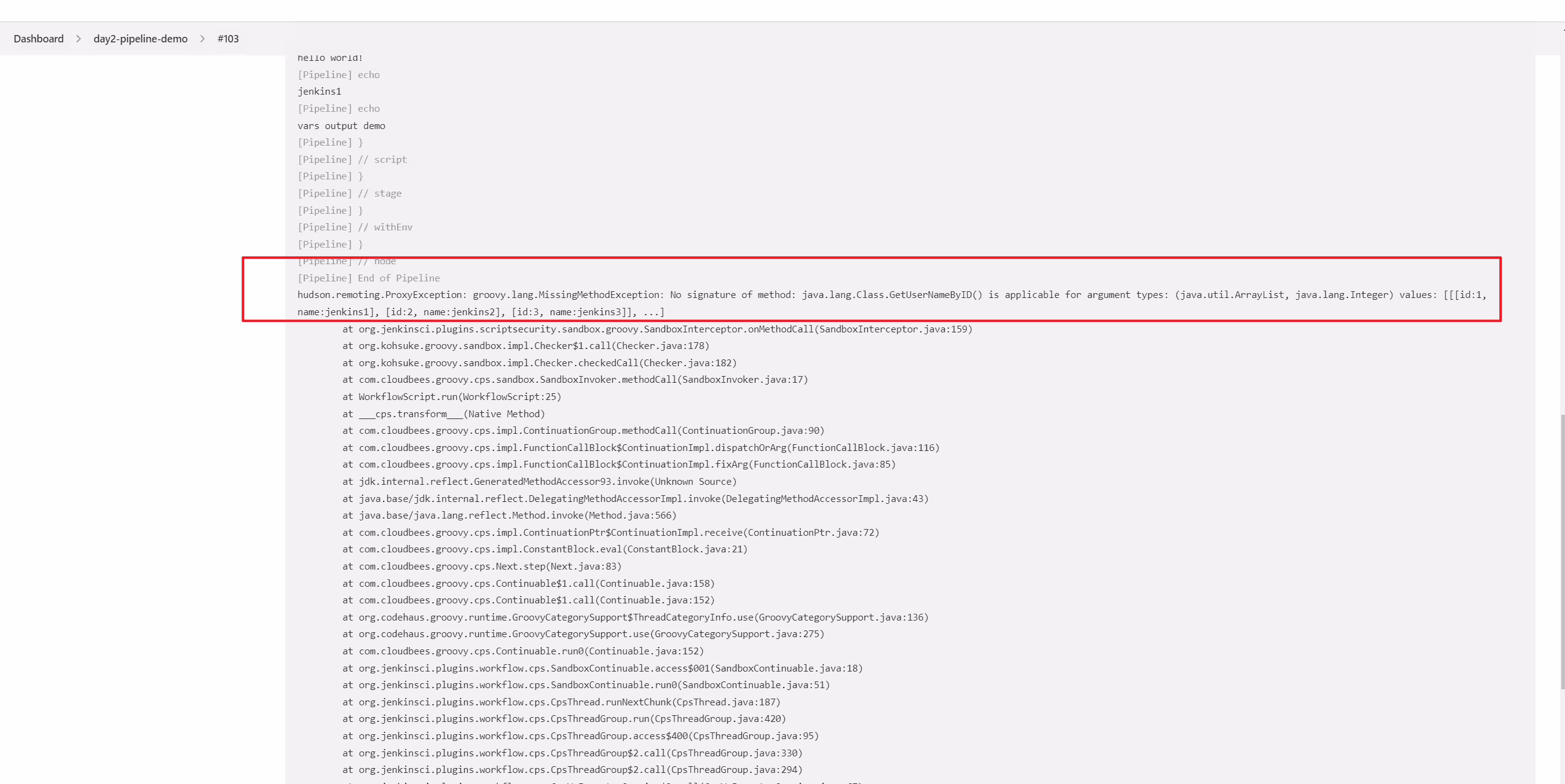

提交并运行流水线:

image-20230411075203751

可以看到会报错的。

  • 我们再来演示下正确版写法:

image-20230411075831846

call是固定写法:

image-20230411075854045

 1@Library("mylib") _
 2
 3//import Common.groovy
 4def common = new org.devops.Common()
 5
 6users = [
 7            ["id": 1, "name": "jenkins1"],
 8            ["id": 2, "name": "jenkins2"],
 9            ["id": 3, "name": "jenkins3"],
10        ]
11
12
13pipeline {
14    agent any
15
16    stages{
17        stage("Test"){
18            steps{
19                script{
20                    echo "hello world!"
21                    name = common.GetUserNameByID(users,1)
22                    print(name)
23
24                    echo "vars output demo"
25                    name = GetUserName(users,2)
26                    print(name)
27                }
28            }
29        }
30    }
31}
  • 提交并运行:

image-20230411075807332

符合预期。

测试4:资源文件引用

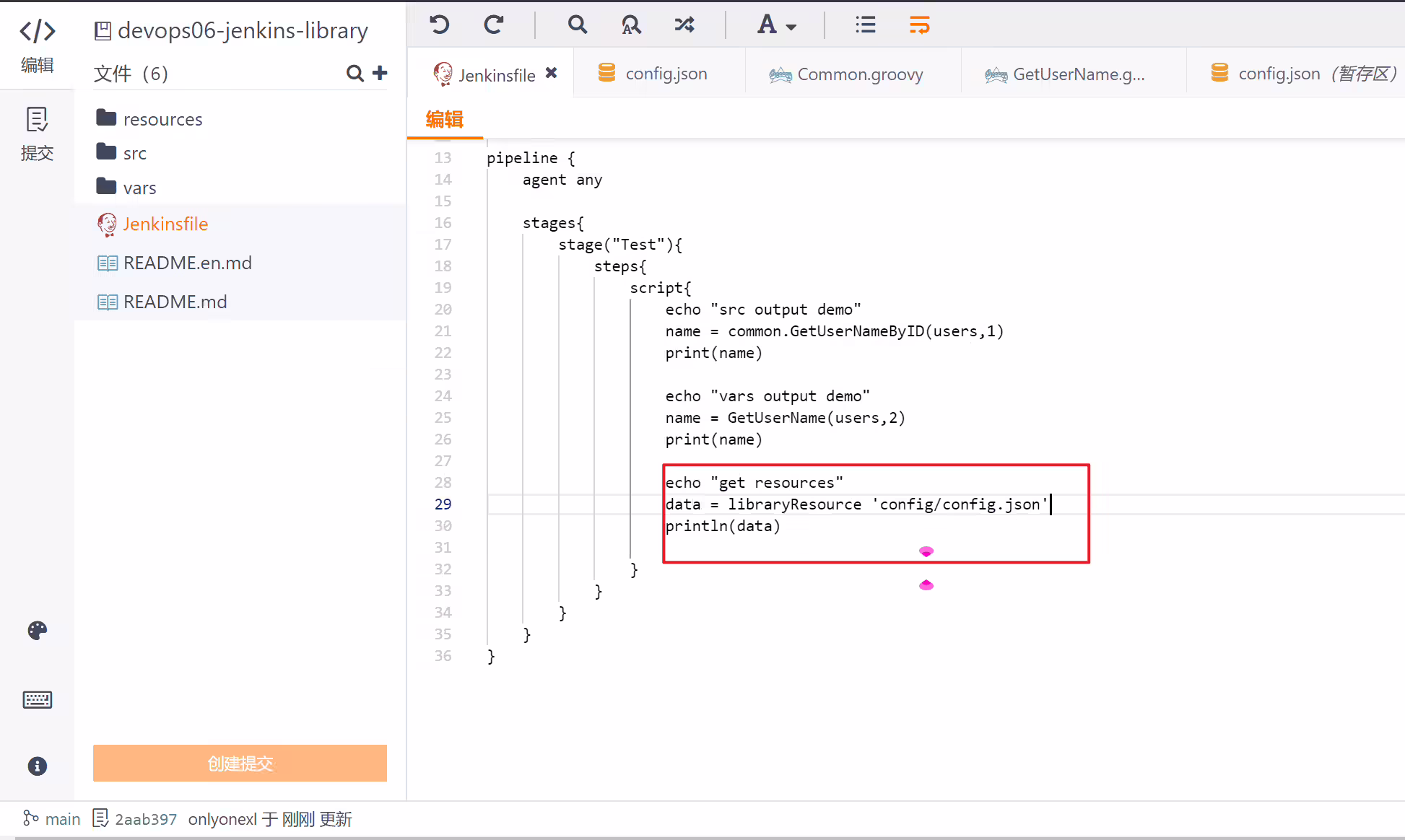

  • 代码

image-20230411165214715

image-20230411165227422

 1@Library("mylib") _
 2
 3//import Common.groovy
 4def common = new org.devops.Common()
 5
 6users = [
 7            ["id": 1, "name": "jenkins1"],
 8            ["id": 2, "name": "jenkins2"],
 9            ["id": 3, "name": "jenkins3"],
10        ]
11
12
13pipeline {
14    agent any
15
16    stages{
17        stage("Test"){
18            steps{
19                script{
20                    echo "src output demo"
21                    name = common.GetUserNameByID(users,1)
22                    print(name)
23
24                    echo "vars output demo"
25                    name = GetUserName(users,2) //注意:这里输出的是字符串数据
26                    print(name)
27
28                    echo "get resources"
29                    data = libraryResource 'config/config.json'
30                    println(data)
31
32                }
33            }
34        }
35    }
36}
  • 提交并运行

image-20230411165134649

测试5:处理json数据

  • 安装pipeline util插件(安装了这个插件后,才能使用这些语法)

image-20230411165815653

image-20230411165707838

  • 代码

image-20230411170933536

 1@Library("mylib") _
 2
 3//import Common.groovy
 4def common = new org.devops.Common()
 5
 6users = [
 7            ["id": 1, "name": "jenkins1"],
 8            ["id": 2, "name": "jenkins2"],
 9            ["id": 3, "name": "jenkins3"],
10        ]
11
12
13pipeline {
14    agent any
15
16    stages{
17        stage("Test"){
18            steps{
19                script{
20                    echo "src output demo"
21                    name = common.GetUserNameByID(users,1)
22                    print(name)
23
24                    echo "vars output demo"
25                    name = GetUserName(users,2)
26                    print(name)
27
28
29                    echo "get resources"
30                    data = libraryResource 'config/config.json' //这里是字符串数据
31                    println(data)
32
33                    //这里是json数据
34                    data_json = readJSON text: data
35                    println(data_json["id"])
36
37                }
38            }
39        }
40    }
41}
  • 运行

image-20230411170538769

4、代码汇总

Jenkinsfile

image-20230411212602091

 1@Library("mylib") _
 2
 3//import Common.groovy
 4def common = new org.devops.Common()
 5
 6users = [
 7            ["id": 1, "name": "jenkins1"],
 8            ["id": 2, "name": "jenkins2"],
 9            ["id": 3, "name": "jenkins3"],
10        ]
11
12
13pipeline {
14    agent any
15
16    stages{
17        stage("Test"){
18            steps{
19                script{
20                    echo "src output demo"
21                    name = common.GetUserNameByID(users,1)
22                    print(name)
23
24                    echo "vars output demo"
25                    name = GetUserName(users,2)
26                    print(name)
27
28
29                    echo "get resources"
30                    data = libraryResource 'config/config.json' //这里是字符串数据
31                    println(data)
32
33                    //这里是json数据
34                    data_json = readJSON text: data
35                    println(data_json["id"])
36
37                }
38            }
39        }
40    }
41}

Common.groovy

image-20230411212647282

 1package org.devops
 2
 3// define GetUserName
 4def GetUserNameByID(users,id){
 5    for (i in users){
 6        if (i["id"] == id){
 7            return i["name"]
 8        }
 9    }
10    return "null"
11}

GetUserName.groovy

image-20230411212711289

1// define GetUserName
2def call(users,id){
3    for (i in users){
4        if (i["id"] == id){
5            return i["name"]
6        }
7    }
8    return "null"
9}

config.json

image-20230411212858260

1{
2    "id": 100,
3    "name": "devops"
4}

FAQ

TemplatingEngine实践(扩展)🍊

准备JTE代码

准备Librarys Resource仓库: 根目录例如gradle和maven都是单独的library, 目录下steps是我们具体定义的功能函数。

tstmp_20230411213132

准备配置Pipeline Template和Configuration Files:

pipeline_config.groovy

 1//加载的仓库
 2libraries{
 3  sonarqube
 4  gradle
 5}
 6
 7// 环境变量
 8application_environments{
 9  dev {
10    short_name = "t"
11  }
12  test
13}

Jenkinsfile

 1pipeline {
 2    agent {
 3        label "master"
 4    }
 5
 6    stages{
 7        stage("build"){
 8            steps{
 9                build(dev.short_name)
10                build_test()
11            }
12        }
13    }
14}

安装JTE插件

安装Templating Engine插件

tstmp_20230411213246

进入系统配置,配置插件:

tstmp_20230411213301

tstmp_20230411213312

Pipeline测试

创建一条Pipeline

tstmp_20230411213328

ConsoleOutput

 1Started by user unknown or anonymous
 2[JTE] Obtained Pipeline Configuration File (show)
 3[JTE] Pipeline Configuration Modifications (show)
 4[JTE] Obtained Template (show)
 5[JTE] Loading Library sonarqube (show)
 6[JTE] Loading Library gradle (show)
 7[JTE] Template Primitives are overwriting Jenkins steps with the following names: (show)
 8[Pipeline] Start of Pipeline
 9[Pipeline] node
10Running on Jenkins in /var/jenkins_home/workspace/demo-jte-pipeline
11[Pipeline] {
12[Pipeline] stage
13[Pipeline] { (build)
14[JTE][Step - gradle/build.call(String)]
15[Pipeline] echo
16gradle build
17[Pipeline] echo
18t
19[JTE][Step - gradle/build_test.call()]
20[Pipeline] readJSON
21[Pipeline] echo
22{"name":"jenkins","id":"devopsvip"}
23[Pipeline] }
24[Pipeline] // stage
25[Pipeline] }
26[Pipeline] // node
27[Pipeline] End of Pipeline
28Finished: SUCCESS

参考文档

https://www.jenkins.io/blog/2019/05/09/templating-engine/

https://jenkinsci.github.io/templating-engine-plugin/2.5/concepts/library-development/library-resources/

示例代码库:

https://jihulab.com/devopsvip/demo-jte-config

https://jihulab.com/devopsvip/demo-jte-lib

12023.4.11-TemplatingEngine实践(扩展)-测试代码

链接:https://pan.baidu.com/s/1C_RaCMCH5PxzNsQ2sVm_5g 提取码:0820

image-20230411213605195

关于我

我的博客主旨:

  • 排版美观,语言精炼;
  • 文档即手册,步骤明细,拒绝埋坑,提供源码;
  • 本人实战文档都是亲测成功的,各位小伙伴在实际操作过程中如有什么疑问,可随时联系本人帮您解决问题,让我们一起进步!

🍀 微信二维码

x2675263825 (舍得), qq:2675263825。

image-20230107215114763

🍀 微信公众号

《云原生架构师实战》

image-20230107215126971

🍀 个人主页:

https://onedayxyy.cn

image-20240604060532928

🍀 知识库:

https://onedayxyy.cn/docusaurus/

image-20240602215648594

🍀 博客:

http://47.100.215.163:8090/

image-20240602215637124

image-20240602215720712

🍀 csdn

https://blog.csdn.net/weixin_39246554?spm=1010.2135.3001.5421

image-20230107215149885

🍀 知乎

https://www.zhihu.com/people/foryouone

image-20230107215203185

最后

好了,关于本次就到这里了,感谢大家阅读,最后祝大家生活快乐,每天都过的有意义哦,我们下期见!

最新文章

文档导航
